PiezoSleep
Data Collection Software
Download the latest version of PiezoSleep here!
Our PiezoSleep data collection software scores sleep and wake automatically while the system is running, processing real-time pressure signals from animals during sleep or waking activity. A highly sensitive, calibrated piezoelectric sensor (or new Adapt-A-Base sensor pad) is under the rodent cage. PiezoSleep collects the analog data, digitizes it, and roughly computes sleep and wake, which is viewable in real time.
1
2
3
4
5
1

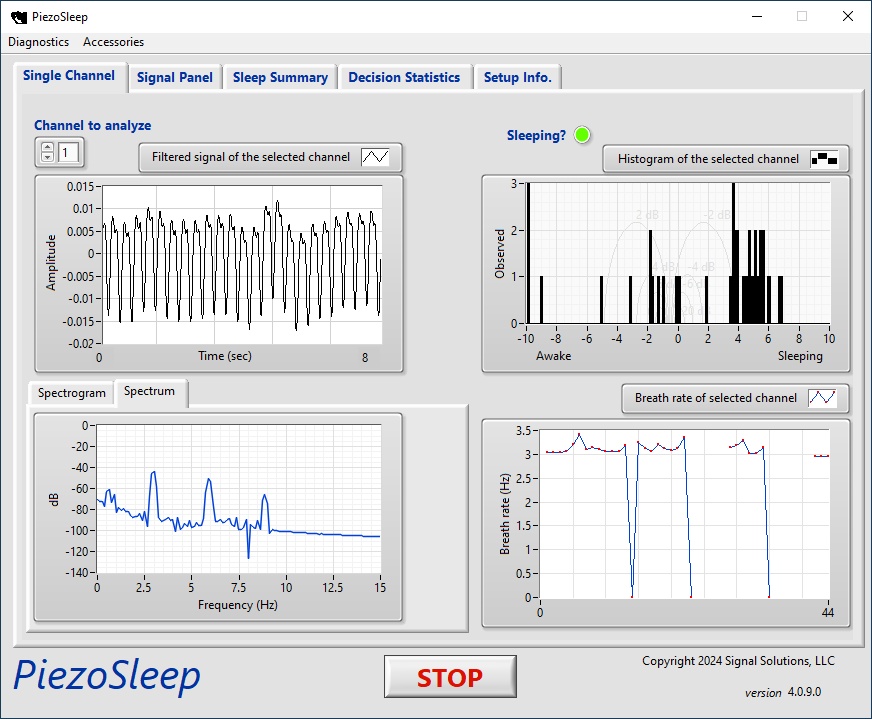

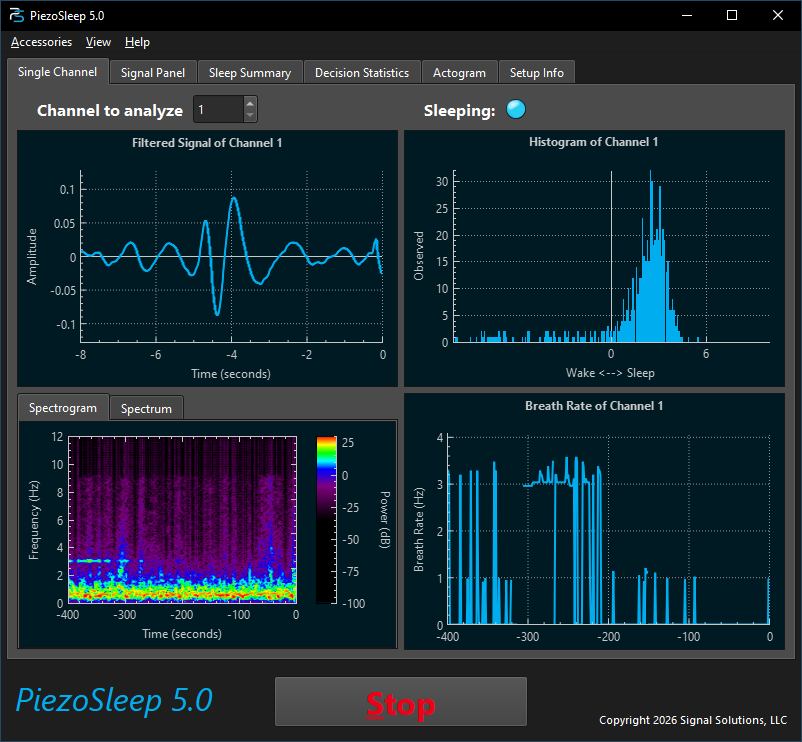

Single Channel (with spectrum tab)
Piezo signal (top left), Sleep decision statistic (top right), Signal power spectrum (bottom left), Breath Rate frequency (bottom right)
2

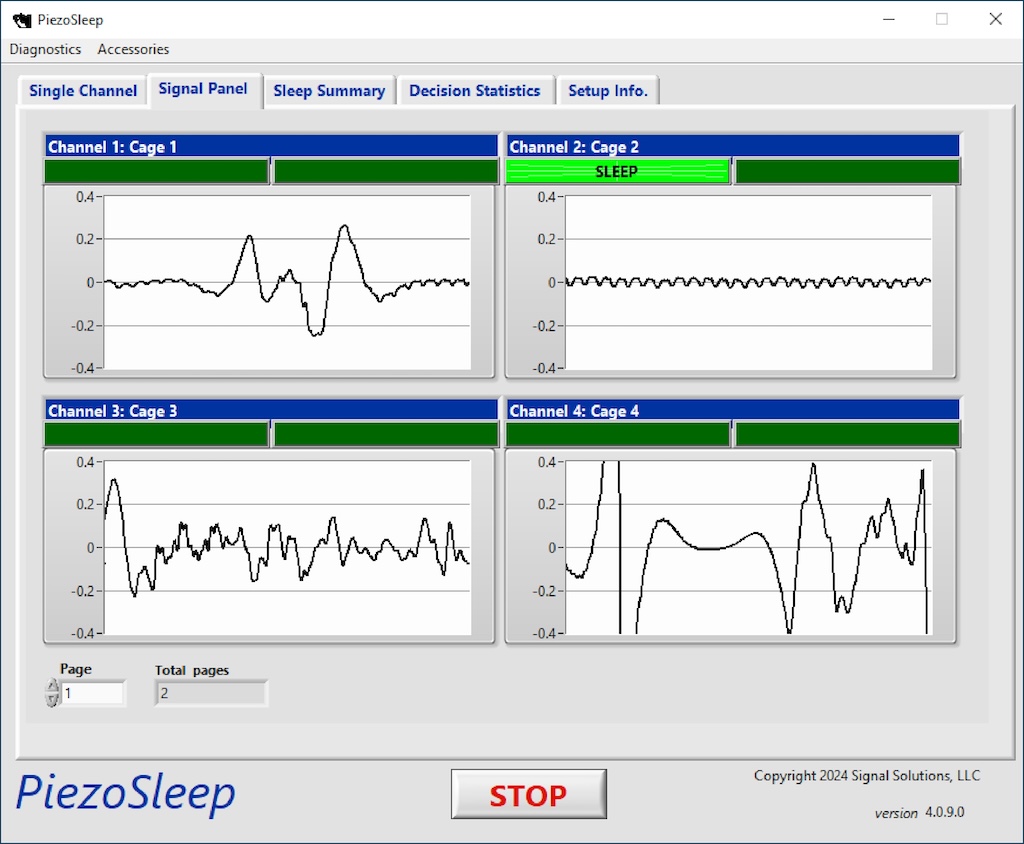

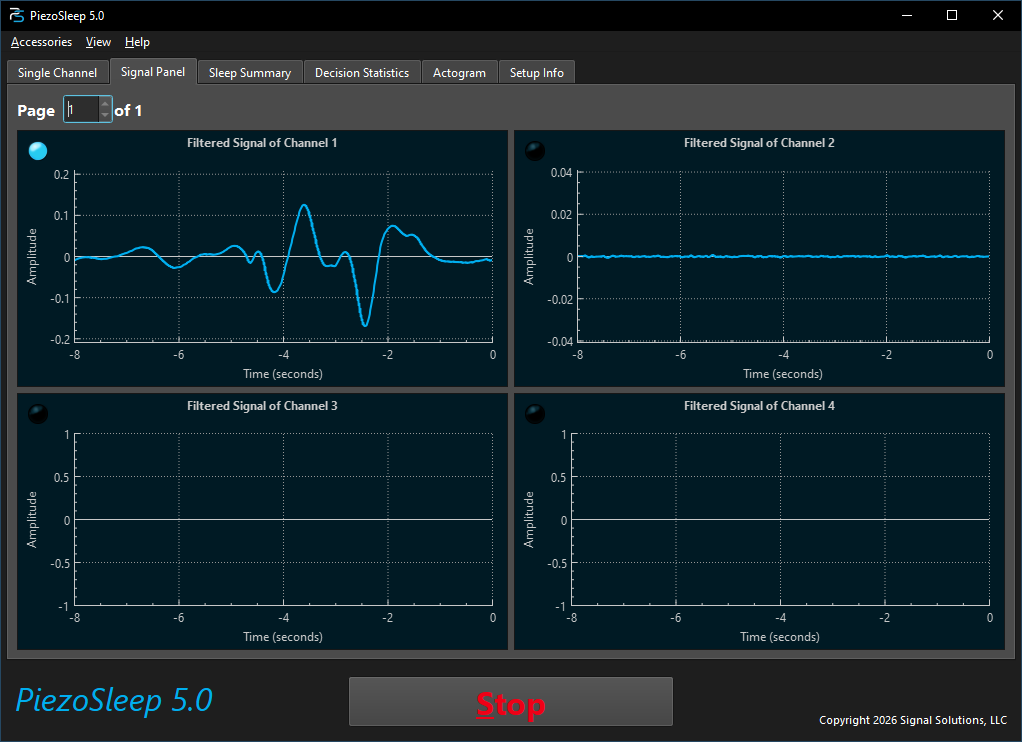

Signal Panel
(4 active channels) Mice are active in channels 1,3, and 4 and asleep in channel 2.
3

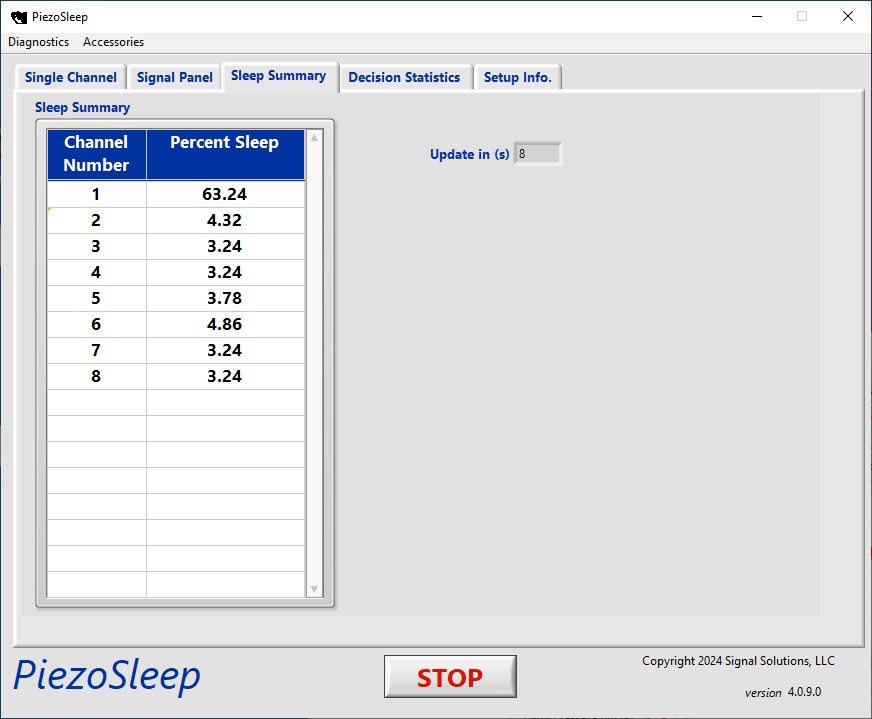

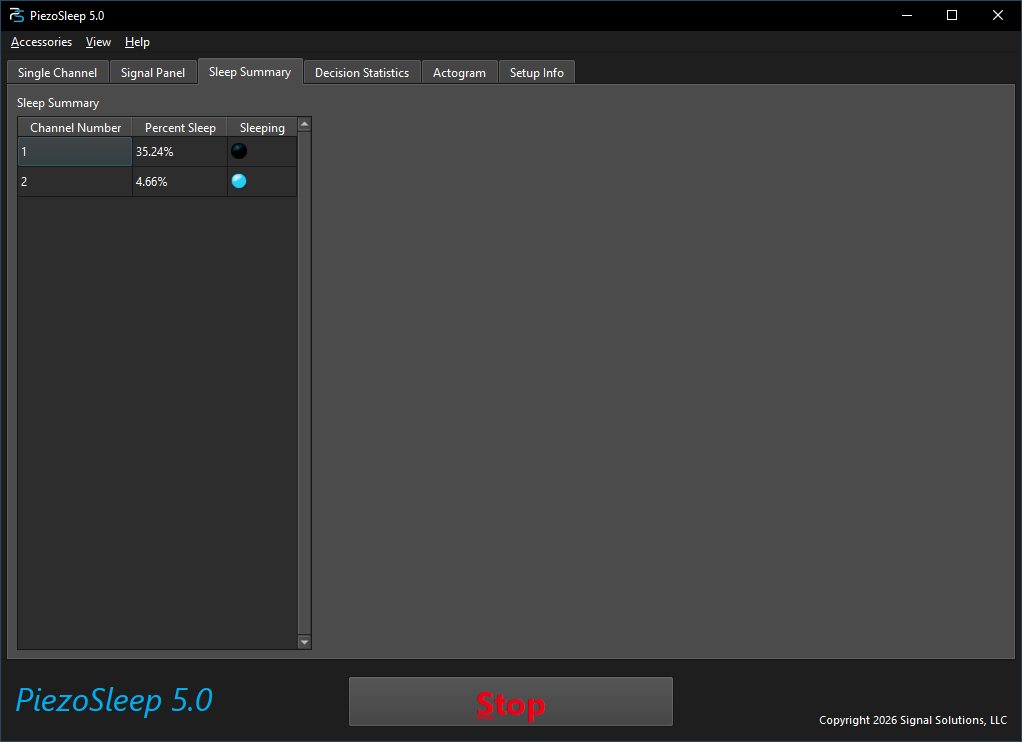

Sleep Summary Tab
View the cumulative percent of sleep from the beginning of the recording.
4

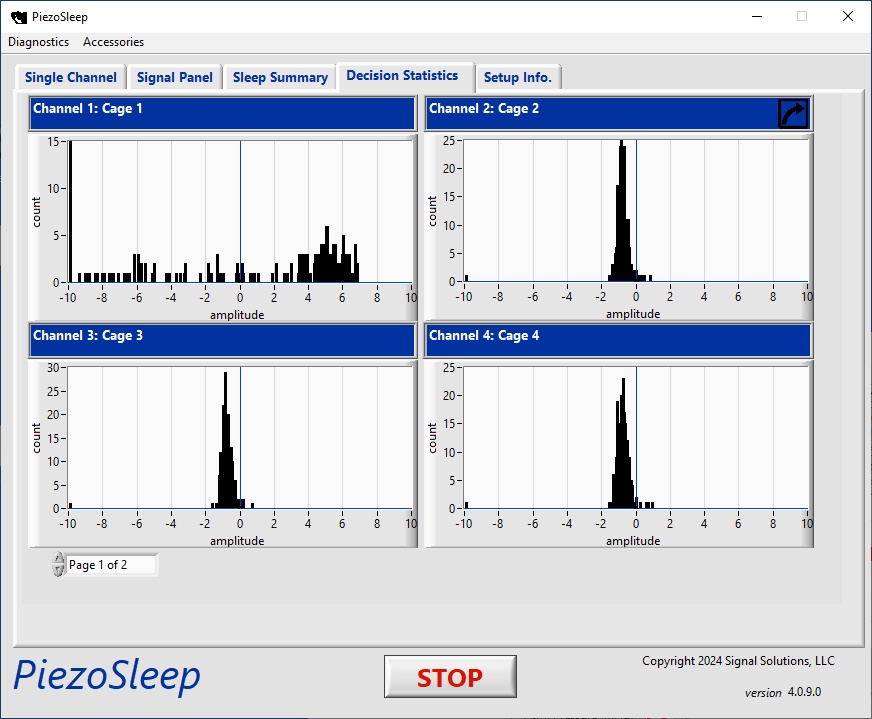

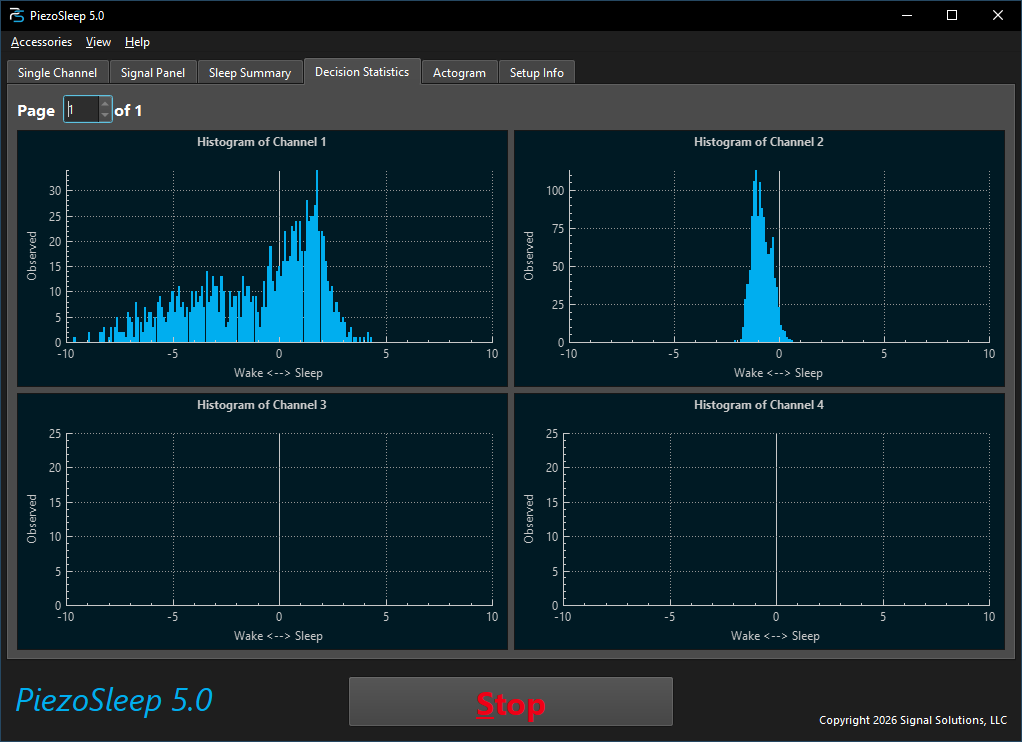

Decision Statistics
Displays a histogram of cumulative sleep scores from the beginning of the recording. Below the 0 threshold indicates wake scores. Each is scored over a two-second interval.
5

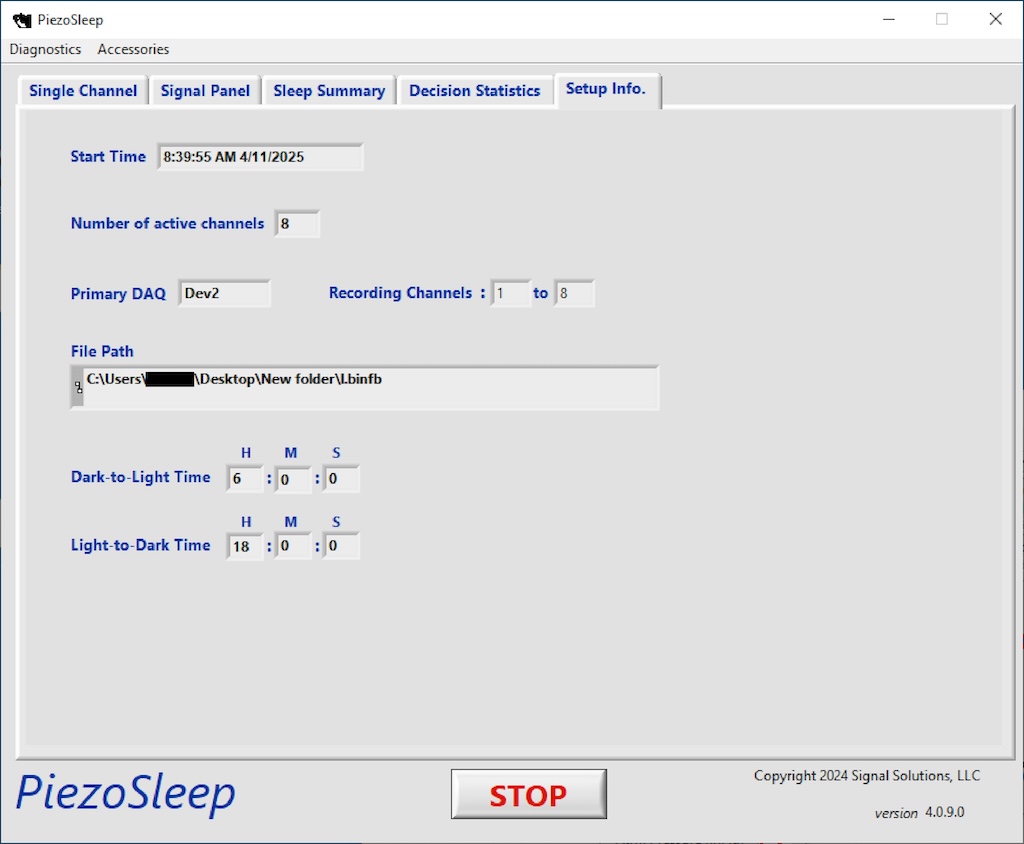

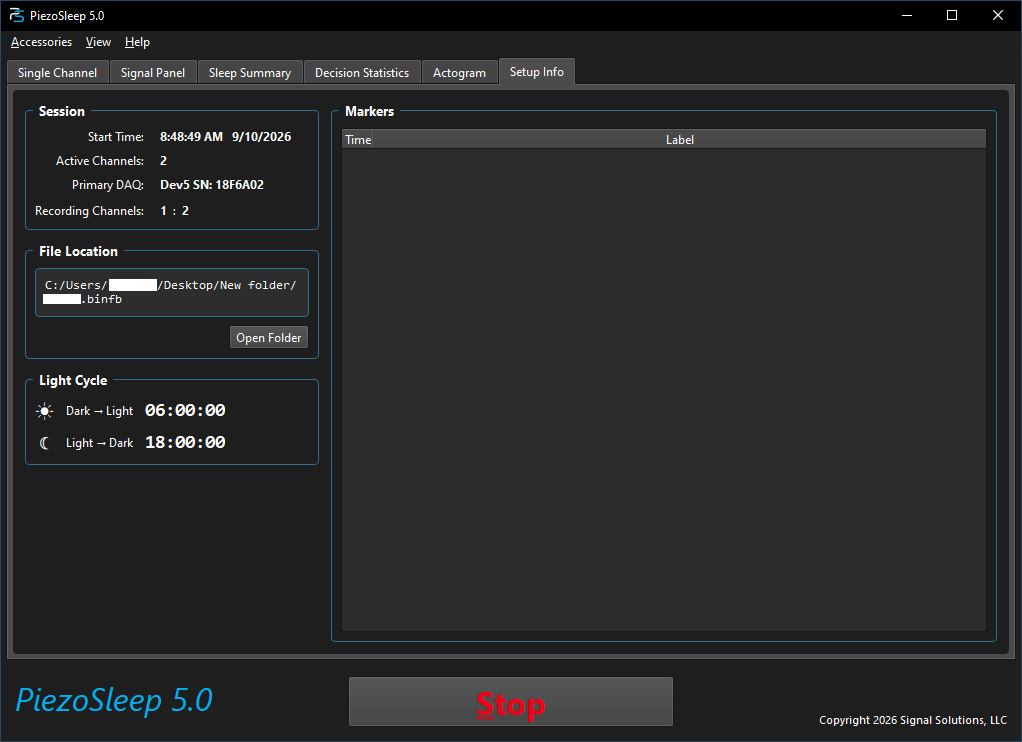

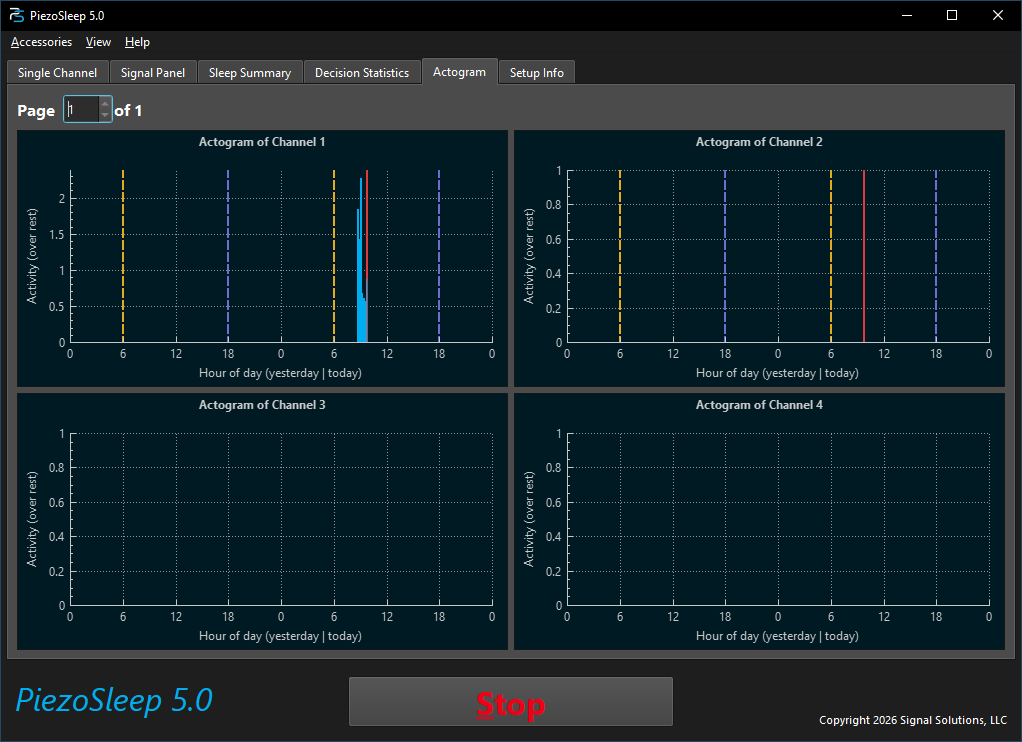

Setup Information Panel

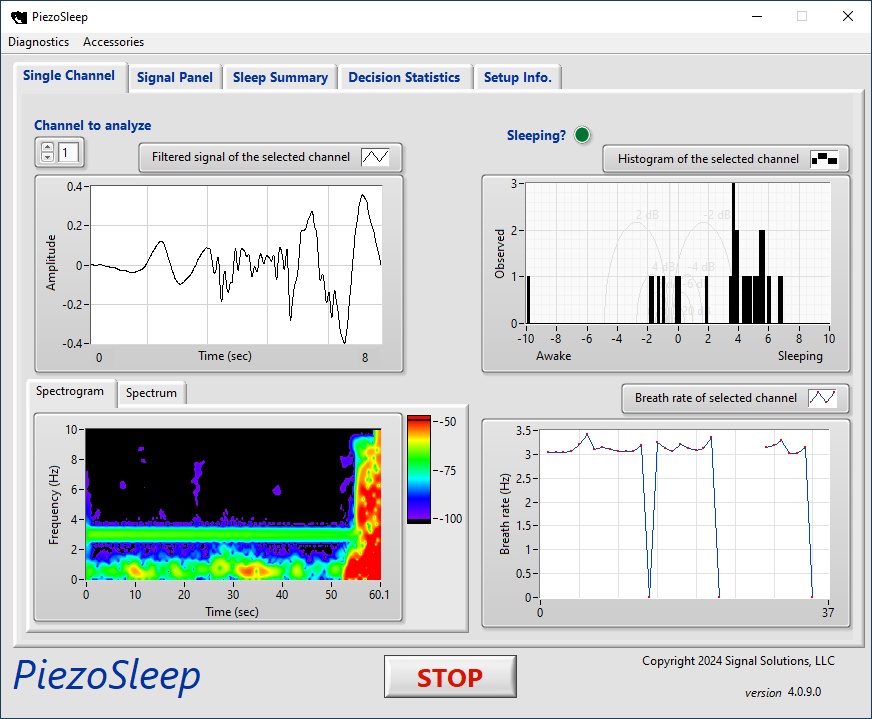

Single Channel (with spectrogram tab)
- Piezo signal (top left)
- Sleep decision statistic (top right)
- Signal power spectrum (bottom left)
- Breath Rate frequency (bottom right)
*Hover over the tabs in the image to see other views of the Running PiezoSleep program. The “Single Channel” tab will reveal an alternate main view.
Software Manuals:
Software Manuals:
Single Channel (with spectrogram tab)
- Piezo Signal (top left)
- Sleep Decision Statistic (top right)
- Signal Power Spectrogram (bottom left)
- Breath Rate Frequency (bottom right)

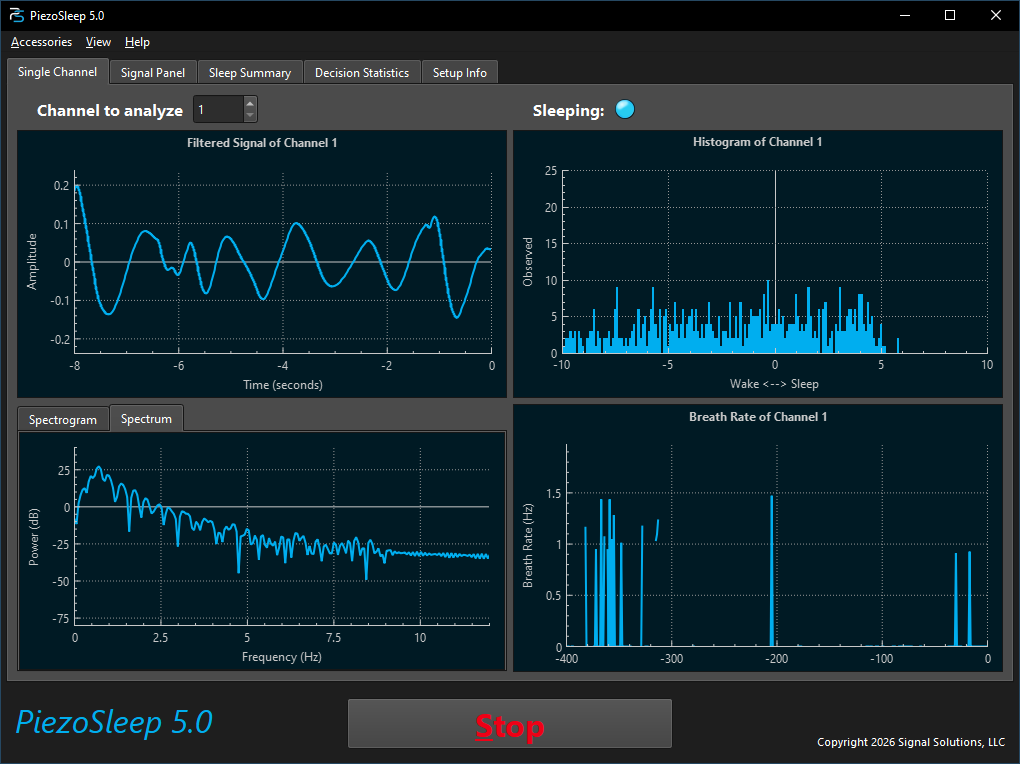

Single Channel (with spectrum tab)
- Piezo Signal (top left)
- Sleep Decision Statistic (top right)
- Signal Power Spectrum (bottom left)
- Breath Rate Frequency (bottom right)
Signal Panel
(4 active channels) Mice are active in channels 1,3, and 4 and asleep in channel 2.
Sleep Summary Tab
View the cumulative percent of sleep from the beginning of the recording.
Decision Statistics
Displays a histogram of cumulative sleep scores from the beginning of the recording. Below the 0 threshold indicates wake scores. Each is scored over a two-second interval.
