PiezoSleep Video Module
Software Add-on
The Synchronized Video module for PiezoSleep can be used to collect simultaneous video recordings from up to 16 cameras alongside PiezoSleep data (Compatible with PiezoSleep 4.0 or later).
Applications:
- Epilepsy
- Sleep-Wake Verification
- Behavior Analysis
- Movement Disorders
- Animal Welfare
- Stereotypies
Video System Highlights:

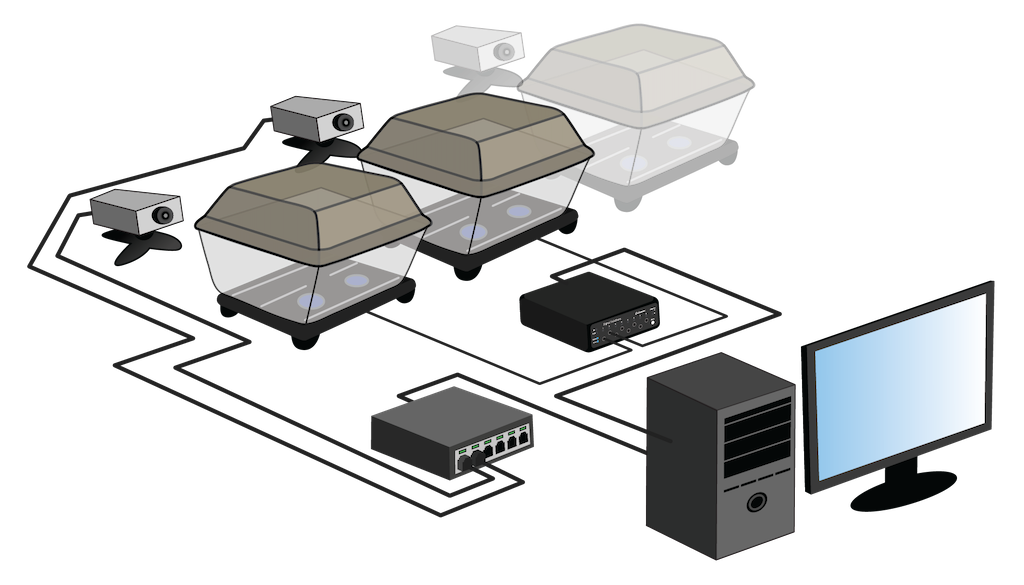

- Simultaneously record up to 16 cameras alongside PiezoSleep data

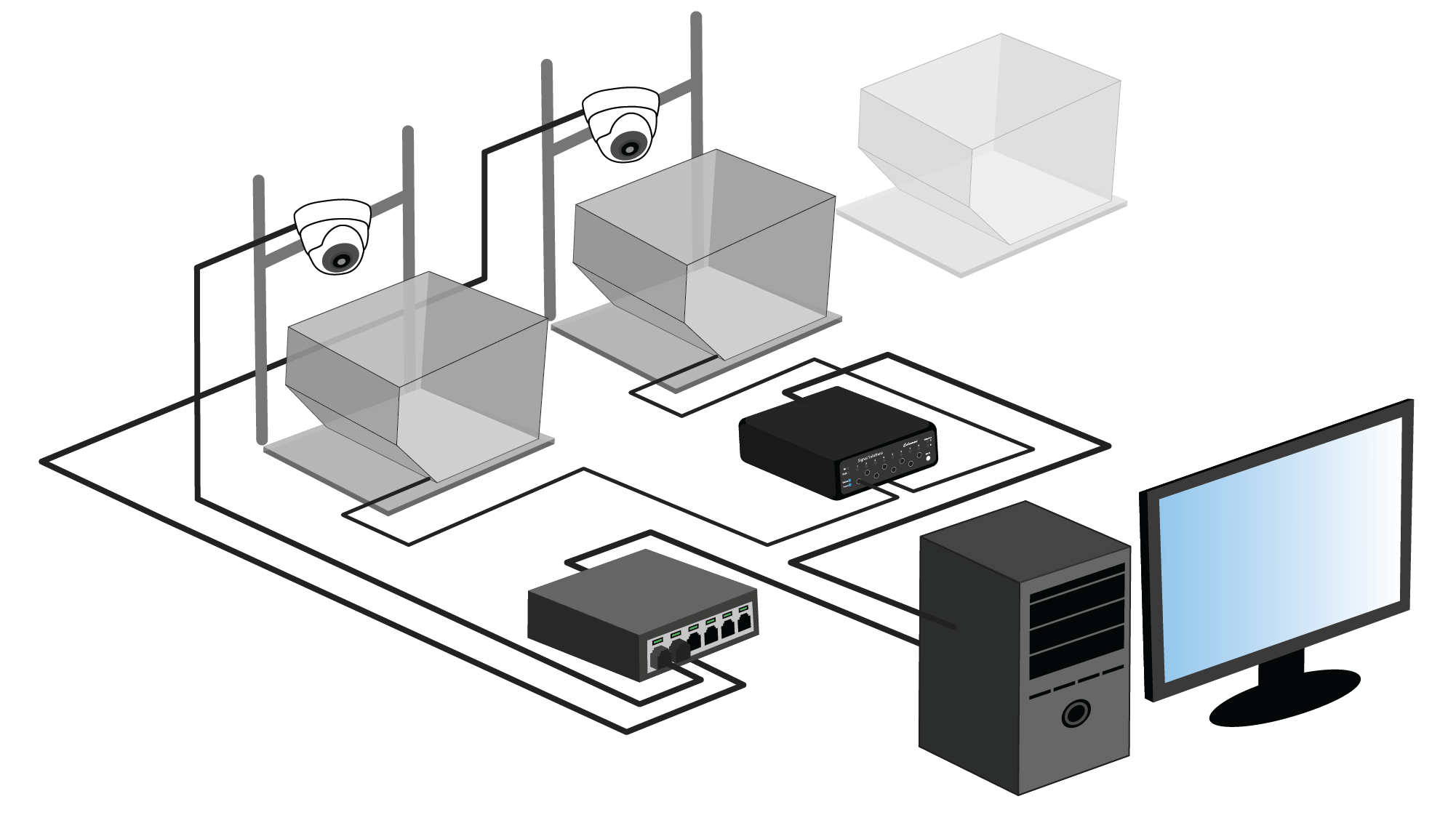

- Flexible mounting options (side view, top view)
- User-configurable resolution video (up to 1920 x 1080p)
- Connected via Power over Ethernet (PoE); no additional power necessary
- Optional integrated infrared illumination
Flexible to suit your research

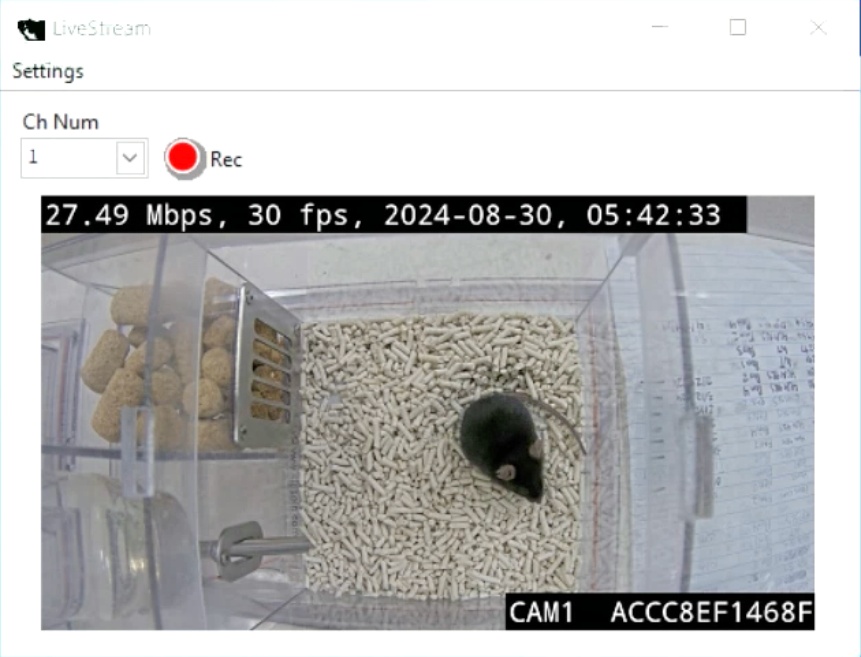

Signal Solutions’ Video Review app allows efficient review and annotation of video recordings.
Key functionality:
- Marking onset and duration of a given behavior
- Exporting labelled events for quantitative analysis
- User-defined behavior labels to suit many research applications
Supported Cameras:
Model | IR-Source | Max Frame Rate | Max Resolution | Lens (focal length) |
AXIS M3125-LVE | Integrated | 60 fps | 1920 x 1080 | Fixed (2.9mm) |
AXIS M1135 MkII | External | 30 fps | 1920 x 1080 | Varifocal (3 – 10mm) |
Computer System Requirements
System benchmarks performed using a Dell Precision 3470 (Windows 10 Professional, Intel Core i7 processor, 16 GB RAM, 2TB NVMe SSD). The number of cameras, resolution, and frame rates may be impacted by computer processor speed, storage media interface, and/or additional programs running simultaneously. It is strongly recommended to connect cameras through a gigabit-PoE switch via an on-board gigabit Ethernet port. An internal SSD is required.
